Hall Effect Current Transducer For Welding Machine / Automation Equipment CS600N

Product Categories
Nanjing Chieful Science & Technology Co., Ltd.
Contact Now

Hall Effect Current Transducer For Welding Machine / Automation Equipment CS600N

Place of Origin : Jiangsu, China (Mainland)

Brand Name : chieful

Model Number : CS600N

Supply Ability : 100000 Piece/Pieces per Month

Packaging Details : carton

MOQ : 1 - 499 Pieces

Price : Negotiable

Usage : Magnetic Sensor

Theory : Hall Sensor

Output : Analog Sensor

color : black

weight : 73 g

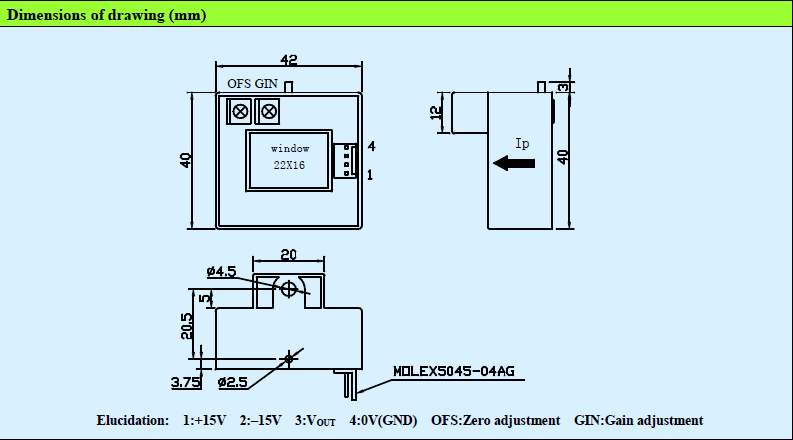

window size : 22*16 mm

Application : welding machine,automation equipment

Certificate : CE ,RoHS,ISO9001

Capacity : 100000pcs/month

Warranty : 5 years

Port : nanjing

Contact Now

Hall Effect Current Transducer For Welding Machine / Automation Equipment CS600N
Product Description

hall effect current transducer CS600N

dismountable hall effect current sensor is an open loop device based on the measuring principle of the hall effect, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC, AC or pulsed currents.

Electrical characteristics
Type CS050N CS100N CS200S CS300S CS400S CS500S CS600S
IPN Primary nominal input current 50 100 200 300 400 500 600 A
IP Measuring range of primary current 0~±100 0~±200 0~±400 0~±600 0~±800 0~±900 0~±900 A
VOUT Nominal output voltage 4±1% V
VC Supply voltage ±15(±5%) V
IC Current consumption VC=±15V <20 mA
VD Insulation voltage AC/50Hz/1min 2.5 kV
εL Linearity <1 %FS
VO Offset voltage TA=25℃ <±25 mV
VOM Residual voltage IPN→0 <±25 mV
VOT Thermal drift of V0 IP=0 TA=–25~+85℃ <±1 mV/℃
TR Response time ≤5 μs
f Frequency bandwidth(-3dB) DC~20 kHz
TA Ambient operating temperature –25~+85 ℃
TS Ambient storage temperature –40~+100 ℃
RL Load resistance ≥10 KΩ
Standard Q/320115QHKJ01-2013

Hall Effect Current Transducer For Welding Machine / Automation Equipment CS600N

About us

Hall Effect Current Transducer For Welding Machine / Automation Equipment CS600N

CHIEFUL offers a wide range of current and voltage transducers in the portfolio. And our transducer can be designed according to the specific demands.The company explore foreign markets actively, our products have been sold to the United Kingdom, Germany, Denmark, France, Italy, Sweden,Turkey, Israel, South Korea, India etc.

Hall Effect Current Transducer For Welding Machine / Automation Equipment CS600NHall Effect Current Transducer For Welding Machine / Automation Equipment CS600N

Exhibition

Hall Effect Current Transducer For Welding Machine / Automation Equipment CS600N

Logistics packaging

Hall Effect Current Transducer For Welding Machine / Automation Equipment CS600N

Hall Effect Current Transducer For Welding Machine / Automation Equipment CS600N

FAQ

Q1: Are you a factory?
A:We are a factory setted up more than 17 years and export more than 10years.

Q2: When is the delivery date?
A: 7-10 working days in general.

Q3: Could you send me a quotation?
A: Sure.

Q4: How about the after service?
A: Five years warranty.

Q5: What about the shipping package?
A: Anti-static package and carton.
