Black Open Loop Hall Current Transducer With Strong Anti-Jamming Capability

Product Categories
Nanjing Chieful Science & Technology Co., Ltd.
Contact Now

Black Open Loop Hall Current Transducer With Strong Anti-Jamming Capability

Place of Origin : Jiangsu, China (Mainland)

Brand Name : chieful

Model Number : CS800F

MOQ : 1 Piece

Price : Negotiable

Usage : Magnetic Sensor

Theory : Hall Sensor

Output : Analog Sensor

color : black

weight : 224g

window size : 41*12mm

Selling Units : Single item

Single package size  : 23X18X7 cm

Single gross weight : 0.224 kg

Package Type : packing in bubble and carton

Contact Now

Black Open Loop Hall Current Transducer With Strong Anti-Jamming Capability

open loop hall current transducer CS800F

Features:
Easy installation
No insertion loss
Strong anti-jamming capability
Small size, saving space
Good linearity
Low temperature drift
High precision
Fast response time
open loop current sensor develops on based on the measuring principle of the hall effect, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC, AC or pulsed currents without insert loss.
Electrical characteristics
Type CS100F CS200F CS400F CS600F CS800F CS1000F
IPN Primary nominal input current 100 200 400 600 800 1000 A
IP Measuring range of primary current 0～±200 0～±400 0～±800 0～±1200 0～±1600 0～±2000 A
VOUT Nominal output voltage 4(±1%) V
VC Supply voltage ±12~±15(±5%) V
IC Current consumption 25 mA
Vd Insulation voltage AC/50Hz/1min 3.0 kV
εL Linearity ±1 %FS
V0 Offset voltage TA =25℃ 25 mV
VOM Residual voltage IPN→0 <±20 mV
VOT Thermal drift of V0 IPN=0 TA =-25～+85℃ <±1 mV/℃
Tr Response time ≤7 μs
f Frequency bandwidth(-3dB) DC～20 kHz
TA Ambient operating temperature -25～+85 ℃
TS Ambient storage temperature -40～+100 ℃
RL Load resistance ≥10K Ω
m Mass 50 g
Standard Q/3201CHGL02-2007

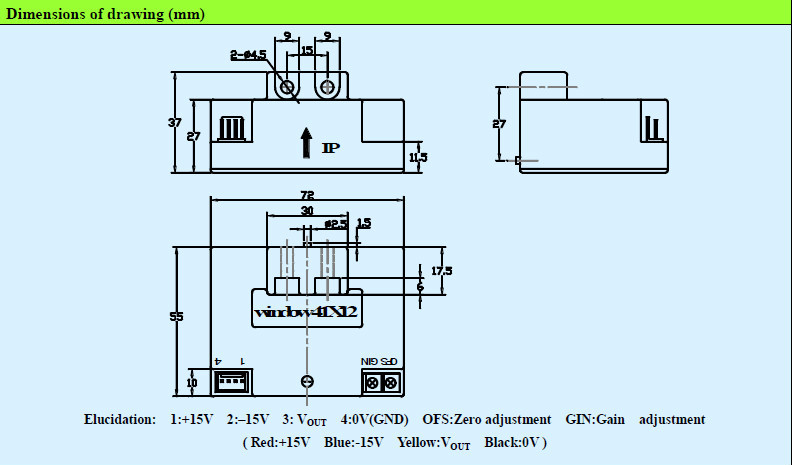

Dimensions of drawing (mm)

Black Open Loop Hall Current Transducer With Strong Anti-Jamming Capability

About us

CHIEFUL offers a wide range of current and voltage transducers in the portfolio. And our transducer can be designed according to the specific demands.The company explore foreign markets actively, our products have been sold to the United Kingdom, Germany, Denmark, France, Italy, Sweden,Turkey, Israel, South Korea, India etc.

Exhibition

Black Open Loop Hall Current Transducer With Strong Anti-Jamming Capability

Logistics packaging

Black Open Loop Hall Current Transducer With Strong Anti-Jamming Capability

Black Open Loop Hall Current Transducer With Strong Anti-Jamming Capability

FAQ

Q1: Are you a factory?
A:We are a factory setted up more than 17 years and export more than 10years.

Q2: When is the delivery date?
A: 7-10 working days in general.

Q3: Could you send me a quotation?
A: Sure.

Q4: How about the after service?
A: Five years warranty.

Q5: What about the shipping package?
A: Anti-static package and carton.
